Philips HeartStart XL+
PhilipsPhilips HeartStart XL+ Features

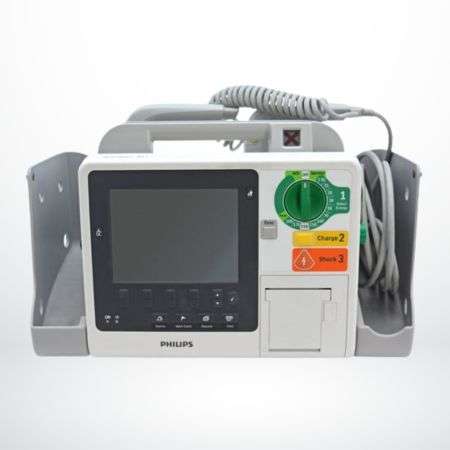

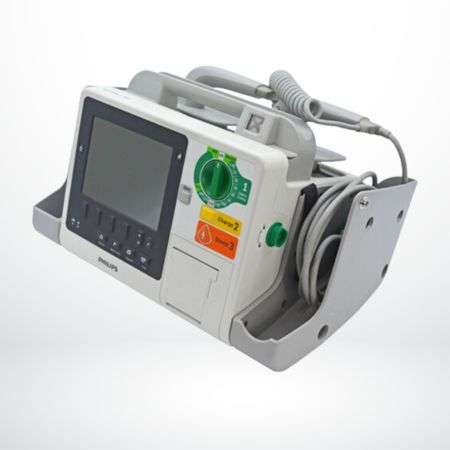

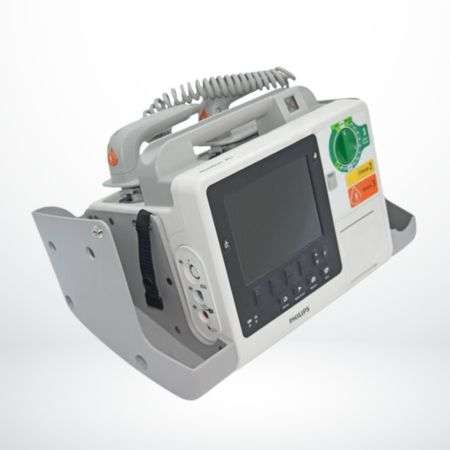

The Philips HeartStart XL+ is a lightweight, portable, defibrillator and monitor. It provides four clinical modes of operation: Monitor, Manual Defibrillation, AED, and Pacer (Optional). The HeartStart XL+ is powered by a rechargeable lithium-ion battery. An AC power supply may serve as a secondary power source and supplies continuous battery charging. The XL+ performs Automated Tests on a regular basis, and stores critical event and trend data in its internal memory.
- Monitor Mode can monitor up to three ECG waveforms at a time, acquired through a 3 or 5-lead ECG set or multifunctional electrode pads. Optional monitoring of SpO2, and EtCO2, and NBP are also available.
- Manual Defibrillation Mode offers simple, 3-step defibrillation. Analyzing the patients ECG and if appropriate, select and energy setting.
- AED Mode analyzes the patients ECG and determines whether a shock is advised.
- Pace Mode offers non-invasive transcutaneous pacing therapy.
Philips HeartStart XL+ Specifications
Dimensions
- Height: 9” (23 cm)
- Width: 11.6” (29.6 cm)
- Depth: 10.9” (27.9 cm)
- Weight: 14.7 lbs (6.6 kg)
Defibrillator
- Waveform: Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance
- Shock Delivery: Via multifunction electrode pads or paddles
- Shock Series: Configurable Energy Escalation in a series
- Charge Time: 3 to 17 seconds
- Patient Impedance Range: 25 to 250 ohm
Display
- Type: Extended Life Lithium, disposable, non-rechargeable
- Operating Life: 5-years
- Shelf Life: 5-years
- Charge Time: 11 seconds to charge a fully discharged Survivalink AED to its maximum energy with a new battery
Energy Levels
- Size: 6.5” (16.5 cm) Diagonal viewing area
- Type: Color TFT LCD
- Resolution: 640 x 480 pixels (VGA) with 32 brightness levels per color
- Sweep Speed: 20 mm/s nominal for ECG and SpO2
- Wave Viewing Time: 5.2 seconds
Battery
- Type: Rechargeable, Lithium-ion
- Charge Time: > 3 hours
- Life: ~3 Years
Printer
- Continuous ECG Strip: The print button starts and stops the strip. The printer can be configured to be run real-time or with a 10-second delay. The strip prints the primary ECG lead and a second wave with event annotations and measurements
- Auto Printing: The printer can be configured to automatically print on Mark Events, Charge, Shock, and Alarm
- Speed: 25 mm/s: With an accuracy of ±5%
- Amplitude Accuracy: 5% for offset voltages of ± 300 mV at 5Hz
- Paper Size: 50mm wide x 30m long
