INFUSION PUMP

(0 customer reviews)

An infusion pump is a medical device used to deliver fluids, medications, or nutrients into a patient’s body in a controlled manner. It regulates the flow rate and volume of the infusion, ensuring precise administration according to prescribed dosages and treatment protocols. Infusion pumps are commonly used in hospitals, clinics, and other healthcare settings to provide intravenous therapy, including medications, fluids for hydration, and nutrition. They come in various types, including volumetric pumps, syringe pumps, and PCA (patient-controlled analgesia) pumps, each designed for specific applications and patient needs. Overall, infusion pumps play a crucial role in delivering essential fluids and medications safely and accurately to patients undergoing medical treatment.

Add to wishlist
Category: Tag:

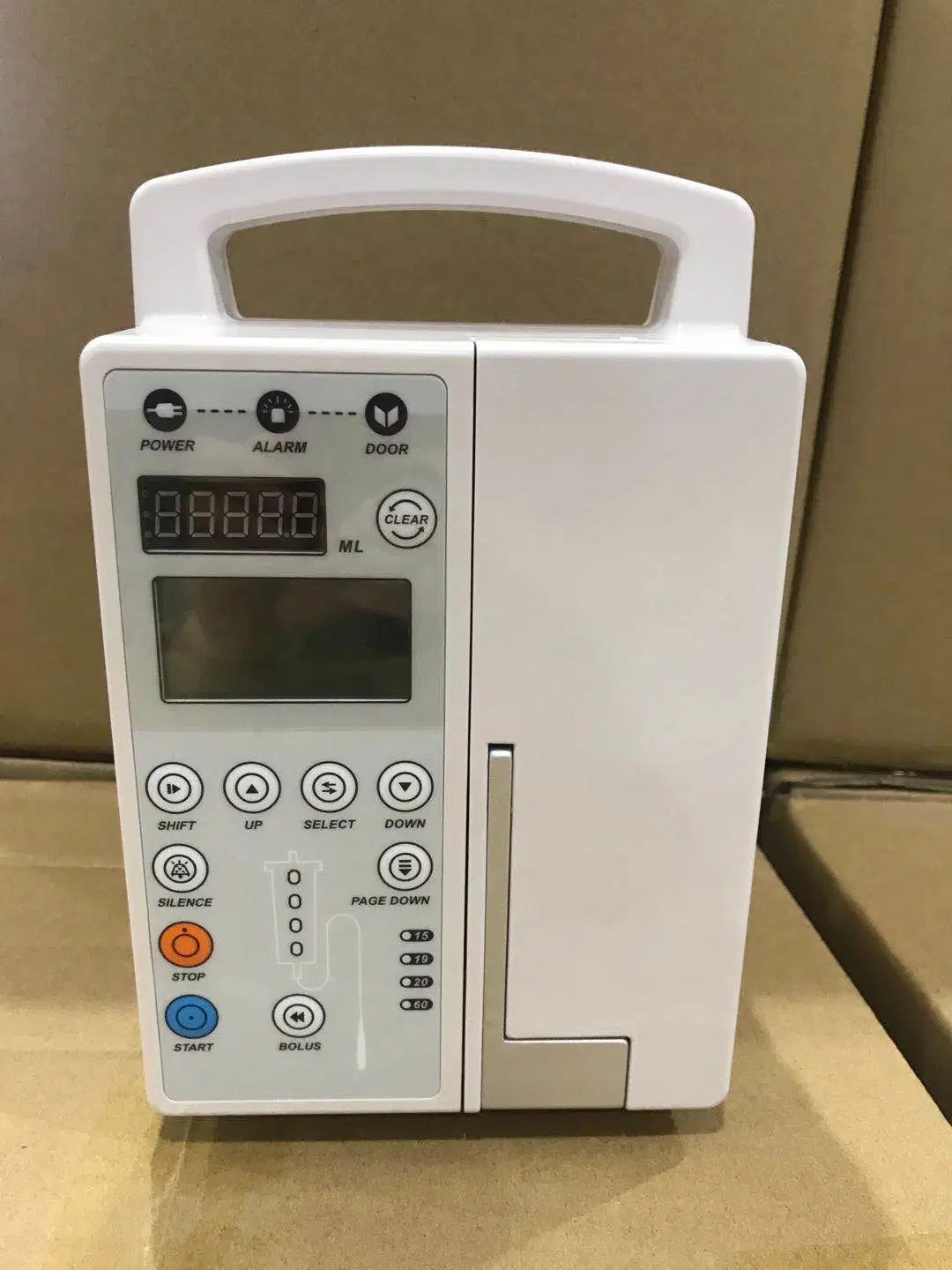

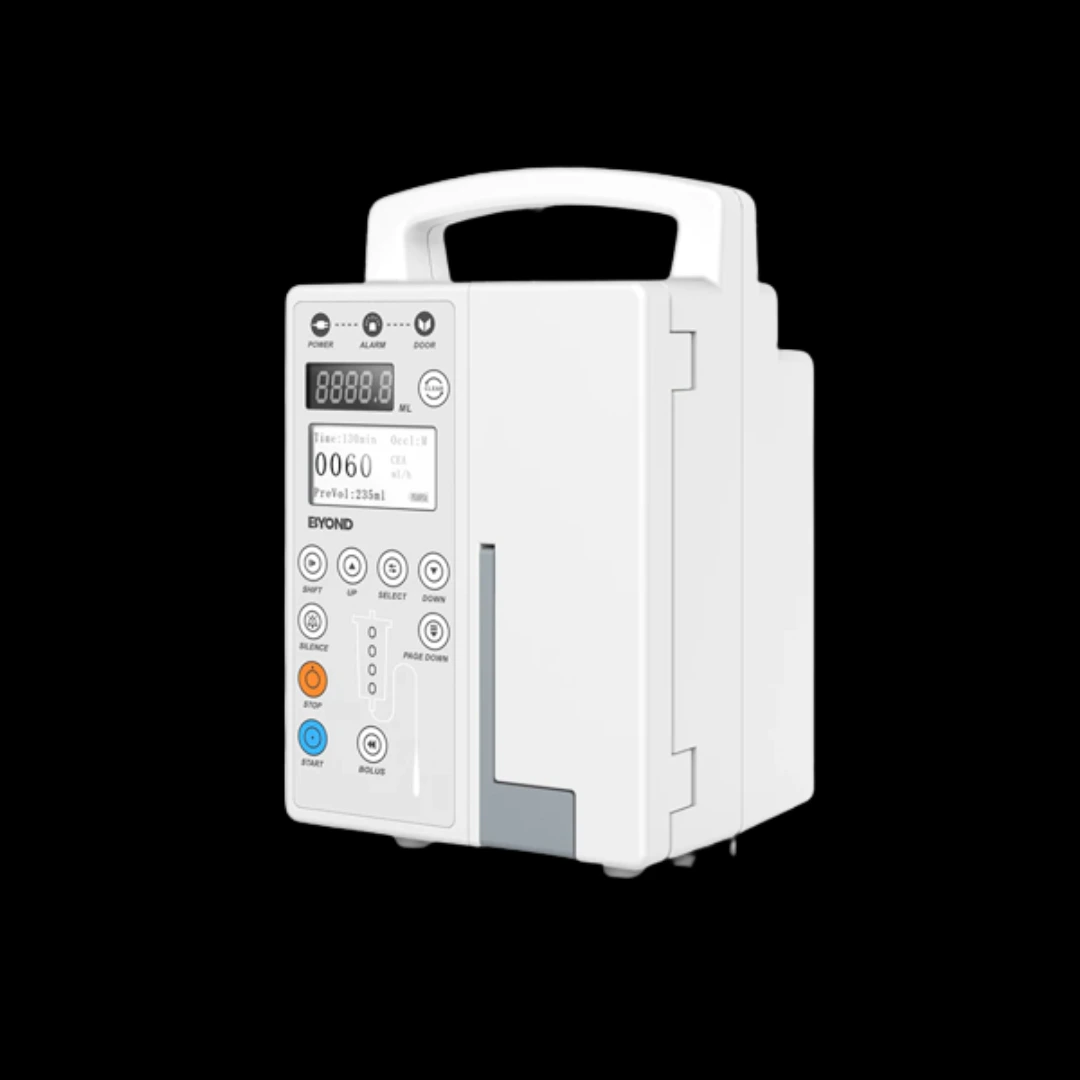

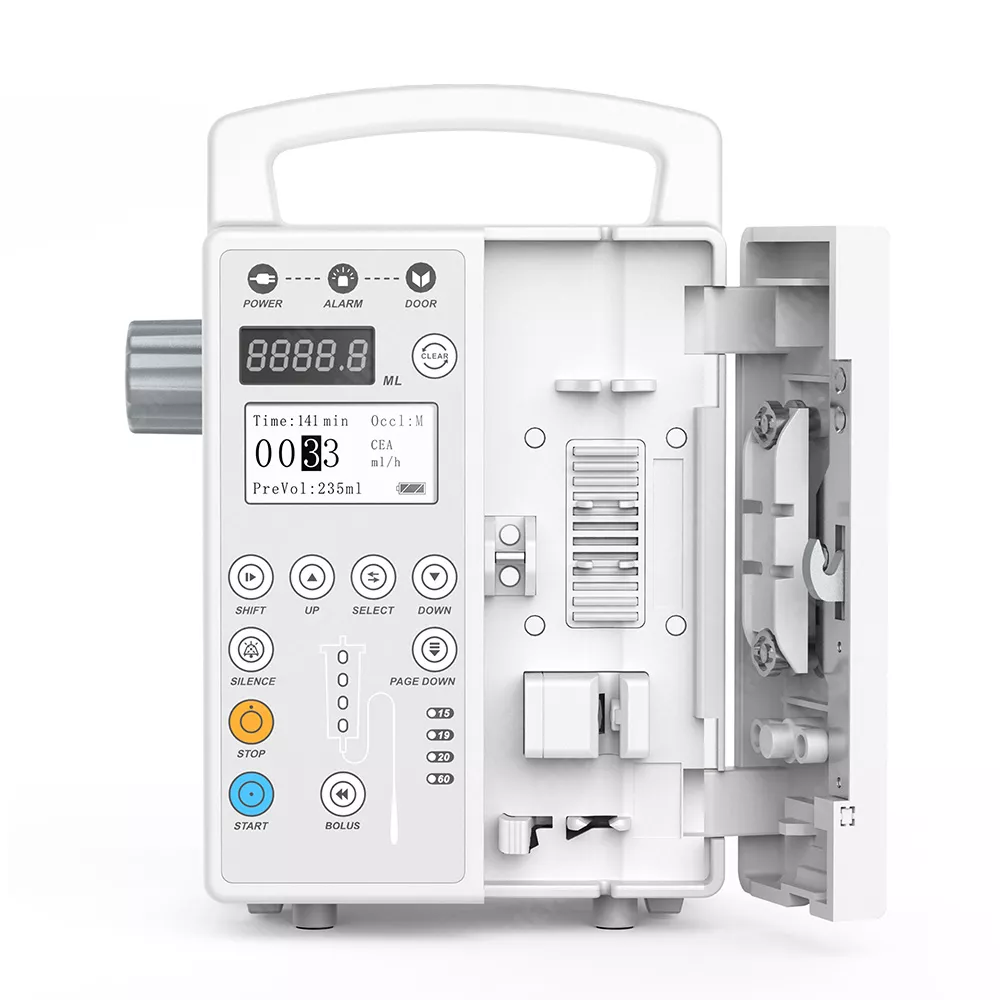

Byond Infusion Pump BYS–820 is a bubble detector and pressure sensor that can precisely detect air bubbles. It features KVO and Bolus functions, a unique voice alarm system and an accurate injection rate to make the injection process safer and more reliable.

 FEATURES
  • HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
  • Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
  • Compatible with any brands of infusion sets after correct calibration;
  • Preset solution volume to greatly reduce the workload of nurses;
  • Work mode: ml/h and drop/min can switch freely;
  • Three levels of occlusion: high, middle and low;
  •  Purge function;
  • KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 3ml/h;
  • Power Source: AC100—240V, 50/60Hz; Internal Battery;
  • Automatically record the settings of last infusion;
  • BYS-820D can store 2000pcs of infusion records and it has a drug library.
  • OEM is available.
PRODUCT SPECIFICATION
Model: BYS-820 & BYS-820D
Infusion Rate : 1ml/h—1200ml/h (1ml/h step)
Purge Rate : 100ml/h—1200ml/h (can be calibrated)
Rate Accuracy : within±5% (after correct calibration)
Volume Limit : 0ml—9999ml
Total Infusion Volume : 0—9999.9ml
Alarm Pressure

  • High 800mmHg±200mmHg (106.7kPa±26.7kPa)
  • Medium 500mmHg±100mmHg (66.7kPa±13.3kPa)
  • Low 300mmHg±100mmHg (40.7kPa±13.3kPa)

Audible and Visible Alarm

  • End of injection
  • Occlusion
  • Door open
  • Bubbles in the tube
  • Wrong setting
  • Low battery
  • AC power pulled out

Power Source

  • 100—240Vac, 50/60Hz
  • Internal rechargeable Li-battery volume≥1,600mAh
    • 4 hours of internal battery backup

    Bubble Detector

    • Ultrasonic wave detector
    • Detection sensitivity ≥25μL

    KVO Speed : 1ml/h—5ml/h (1ml/h step)

    Power Consumption : 30VAOperation Environment

    • Temperature 5— 40 degree
    • Relative Humidity 20—90%

    Storage Environment

    • Temperature -30—– 55 degree
    • Humidity ≤95%
    • Atmospheric Pressure 50.10KPa—106.0KPa

    Infusion Set : Compatible with any brands
    Forbidden : Not support blood Infusion
    Dimension : 140mm(L) x 157mm(W) x 220mm(H)
    Net Weight : 1.8kg
