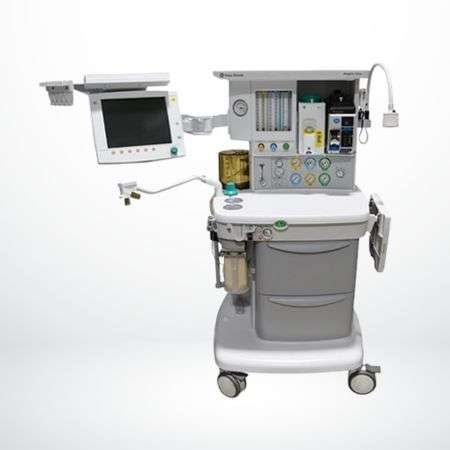

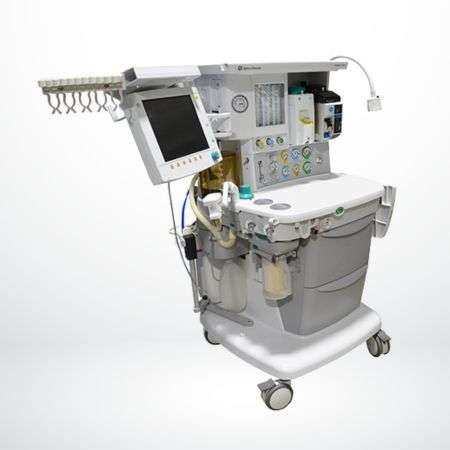

GE Datex-Ohmeda Aespire

The GE Datex Ohmeda Aespire View is compact, durable, with easy to clean surfaces. It comes with a 12-inch ventilation display that showcases waveforms and alarm indicators. The Aespire offers both anesthesia gases and ventilation at the same time. The Aespire View uses the GE SmartVent 7900 as the ventilator system for the anesthesia machine. The ventilation system makes it easy to minimize the space in the ICU or operating room by combining the Ventilator and the anesthesia machine in one. The Aespire View also comes standard with GE’s advances Breathing System (ABS). This allows the anesthesia machine to work with low circuit volumes as well as low flow anesthesia.

Small breathing system volume rapidly response to fresh gas changes with the ABS (Advanced Breathing System).
Fewer parts to help prevent unwanted disconnects and leaks.
Bag-to-vent switch works without electronics in case of power failure.
Autoclavable and latex-free surfaces.
Optional EXChange and condenser.
Extra large work surface area.
Two storage drawers.

Add to wishlist

Category: Anesthesia Machine Tag: Ot Ge

Description
Reviews (0)

GE Datex-Ohmeda Aespire View Specifications

Dimensions

Height: 53.5 in (136 cm)
Width: 29.5 in (75 cm)
Depth: 29.1 in (74 cm)
Weight: approximately 300 lbs (136 kg)

Ventilation Operating Modes

Ventilator (VT) Parameter Ranges

Tidal volume range: 20 to 1500 mL (Volume Control SIMV/PSV and PCV-VG modes); 5 to 1500 mL (Pressure Control Mode)
Incremental settings: 20 to 50 mL (increments of 1 mL); 50 to 100 mL(increments of 5 mL); 100 to 300 mL (increments of 10 mL); 300 to 1000 mL (increments of 25 mL); 1000 to 1500 mL (increments of 50 mL)
Minute volume range: 0 to 99.9 L/min
Pressure (P_Inspired) range: 5 to 60 cm H2O (increments of 1 cm H2O)
Pressure (P_limit) range: 12 to 100 cm H2O (increments of 1 cm H2O)
Pressure (P_support) range: Off, 2 to 40 cm H2O (increments of 1 cm H2O)
Rate: 4 to 100 breaths per minute for PCV-VG, Volume Control and Pressure Control vent modes. 2 to 60 breaths per minute for SIMV/PSV, PSVPro and SIMV vent modes (increments of 1 breath per minute).
Inspiratory/expiratory ratio: 2:1 to 1:8 (increments of 0.5)
Inspiratory time: 0.2 to 5.0 seconds (increments of 0.1 seconds) (SIMV and PSVPro vent modes)
Trigger window: 0 to 80% (increments of 5%)
Flow trigger: 0.2 to 1.0 L/min (increments of 0.2 L/min); 1 to 10 L/min (increments of 0.5 L/min)
Inspiration termination level: 5 to 75% (increments of 5%)
Backup mode delay: 10 to 30 seconds (increments of 5 seconds)

Positive End Expiratory Pressure (PEEP)

Type: Integrated, electronically controlled
Range: OFF, 4 to 30 cm H2O (increments of 1 cm H2O)

Ventilator performance

Pressure range at inlet: 240 kPa to 700 kPa; 35 psig to 100 psig
Peak gas flow: 120 L/min + fresh gas flow
Flow valve range: 1 to 120 L/min

Ventilator monitoring

Expiratory minute volume range: 0 to 99.9/min
Expiratory tidal volume range: 0 to > 1500 mL
O2%: < 5 to 110%
Peak pressure: –20 to 120 cm H2O
Mean pressure: –20 to 120 cm H2O
Plateau pressure: 0 to 120 cm H2O
Pressure waveform sweep speed: 4 to 25 breaths per minute (0 to 16 seconds); 26 to 75 breaths per minute (0 to 8 seconds); 75 breaths per minute (0 to 4 seconds)

Delivery and Monitoring Accuracy

Volume delivery: > 210 mL = better than 7%; < 210 mL = better than 15 mL; < 60 mL = better than 10 mL
Pressure delivery: ±10% or ±3 cm H2O
PEEP delivery: ±1.5 cm H2O
Volume monitoring: > 210 mL = better than 9%; < 210 mL = better than 18 mL; < 60 mL = better than 10 mL
Pressure monitoring: ±5% or ±2 cm H2O

Operating Environmental Specifications

Temperature: 10° to 40°C/50° to 104°F
Humidity: 15 to 95% relative humidity
Altitude: –440 to 3565 m/500 to 800 mmHg

Storage Environmental Specifications

Temperature: –25° to 65°C/–13° to 149°F
Humidity: 15 to 95% relative humidity
Altitude: –440 to 5860 m/375 to 800 mmHg
Oxygen cell storage: –15° to 50°C/5° to 122°F; 15 to 95% relative humidity; 500 to 800 mmHg
