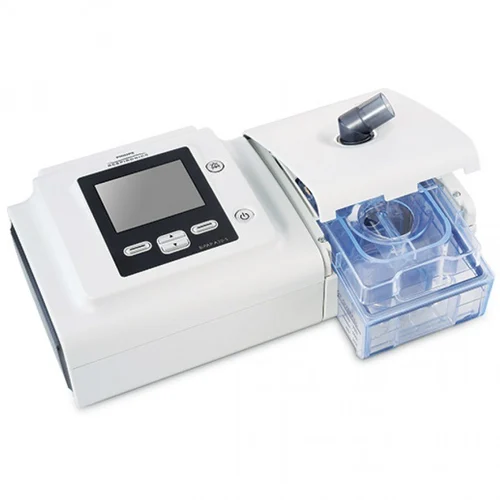

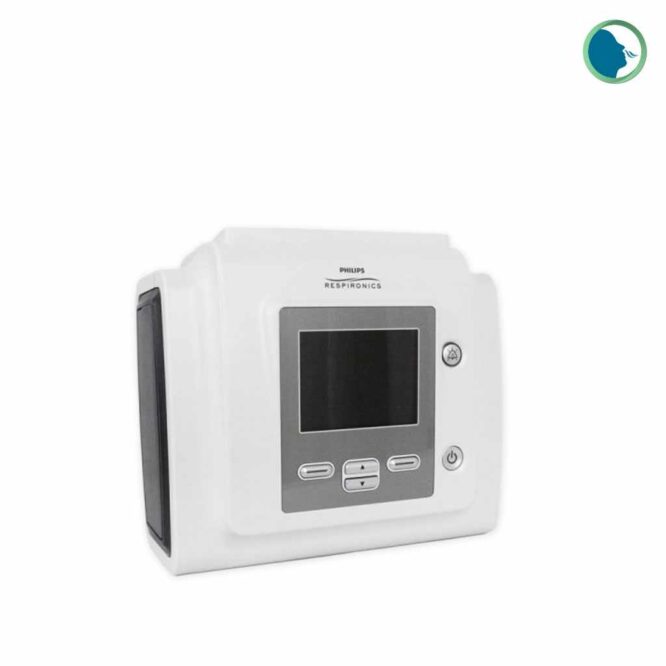

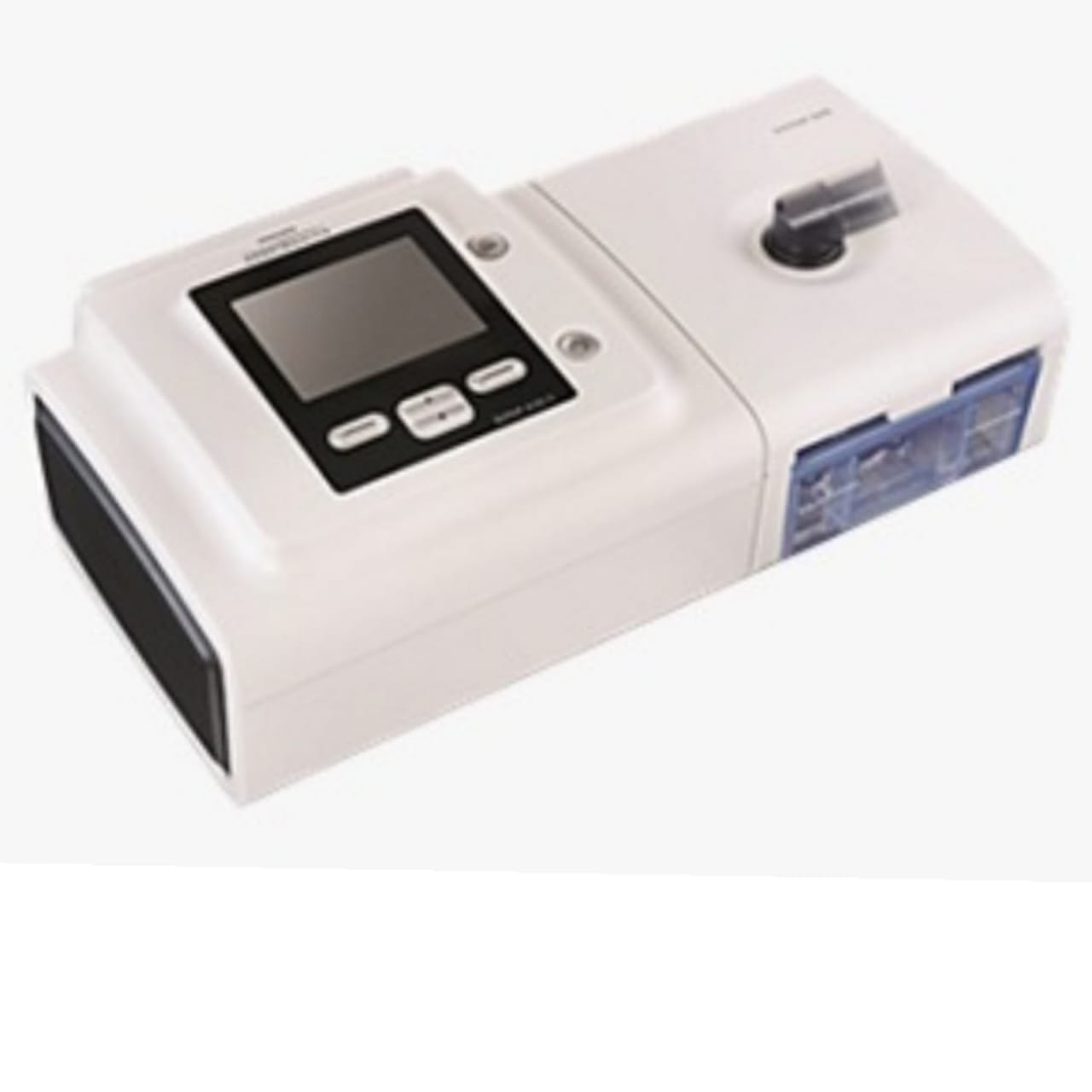

PHILIPS BIPAP A -30 MACHINE

BiPAP stands for Bilevel Positive Airway Pressure. It’s a type of non-invasive ventilation therapy used to treat sleep-related breathing disorders such as sleep apnea, as well as respiratory conditions like chronic obstructive pulmonary disease (COPD).

Here’s how it works: When you use a BiPAP machine, it delivers pressurized air through a mask that you wear while sleeping. This air helps keep your airways open by providing a continuous flow of pressure during both inhalation and exhalation.

Key features of the BiPAP A-30 include:

1. Dual Pressure Settings: The device offers both inspiratory positive airway pressure (IPAP) and expiratory positive airway pressure (EPAP) settings, allowing clinicians to customize therapy according to individual patient needs. This dual-pressure capability ensures effective ventilation support throughout the breathing cycle.
2. Pressure Relief Technology: Built-in pressure relief mechanisms enhance patient comfort by reducing pressure during exhalation. This feature helps alleviate discomfort associated with breathing against higher pressures and promotes better compliance with therapy.
3. Advanced Algorithms: The BiPAP A-30 incorporates sophisticated algorithms to monitor patient breathing patterns and adjust pressure settings in real-time. These algorithms ensure responsive and adaptive therapy delivery, optimizing patient respiratory function while adapting to changing needs throughout the night.
4. Data Monitoring and Connectivity: The device is equipped with comprehensive data monitoring capabilities, allowing clinicians to track patient compliance and therapy efficacy over time. Additionally, it may feature connectivity options such as Bluetooth or Wi-Fi, enabling remote monitoring and data access for healthcare providers.
5. Intuitive User Interface: Designed with ease of use in mind, the BiPAP A-30 features an intuitive interface with clear displays and simple navigation menus. This user-friendly design facilitates quick setup and adjustment of therapy settings, minimizing the learning curve for both patients and caregivers.
6. Compact and Portable Design: Despite its advanced functionality, the BiPAP A-30 is compact and lightweight, making it suitable for use in various clinical settings, including hospitals, clinics, and homecare environments. Its portable design enhances patient mobility and convenience without compromising on performance.

   Specifications

   BiPAP A30 specifications

   Weight	2.1 Kgs (with power supply)
   Ventilation modes	CPAP, S, S/T, PC, T
   Hybrid ventilation	AVAPS (Average Volume Assured Pressure Support)
   IPAP	4 – 30 cm H₂O
   Size	21.6 cm W x 19 cm L x 11.5 cm H
   DC power source	12 VDC, 5.0 A (external battery), 24 VDC, 4.2 A (power supply)
   AVAPS rate	0.5 to 5 cmH2O/min
   EPAP	4 – 25 cm H₂O
   Target tidal volume (when AVAPS enabled)	200 – 1500 ml
   Inspiratory time	0.5 – 3 sec.
   Breath rate	0 – 40
   Rise time	1 (100 ms) – 6 (600 ms)
   Triggering and cycling	Digital Auto-TRAK algorithm
   Polygraph and polysomnography connections	Direct connection to Alice PDx and Alice6 PSGs, AOM to connect to most PSG systems
   Noise level	< 30 dBA at 10 cmH2O
   Humidification	System One humidity control and ‘Dry Box’ technology
   Alarms	Patient disconnection, Apnea, Low minute ventilation, Low tidal volume with AVAPS only), High respiratory rate
   Monitoring	Pressure, tidal volume, minute ventilation, respiratory rate, Leak, I/E ratio
   Data management	EncorePro 2 and DirectView software Compatible with oximetry module, Advanced detection of residual respiratory events (Apnea/Hypopnea Index, Obstructed Airway Apnea, Clear Airway Apnea, Hypopnea, Periodic Breathing, RERA, Large Leak and Snore)
   Remote control	Compatible with PC Direct
